12 x 12 Ultimate Maker Square - DXF FILES

$6.00

12 x 12 Ultimate Maker Square - DXF FILES

$6.00

Products are usually delivered in 3-7 days.

0 watching this item.
Product description

It's time to take your shop to the next level with these custom fixtures.  Each one is designed to work with our Ultimate Maker Table and all other tooling/fixtures, so you can make almost anything efficiently in your shop. We have done the work in CAD so you can use this file to make as many fixtures as you need for the rest of your career.  Simply download the file and send it to your plasma or local laser.

Files are designed for a laser with very little tolerance, if cut on a plasma table, holes will be undersized approximately 0.06".  Watch this video for expected results using different plasma settings.



Overall Dimensions

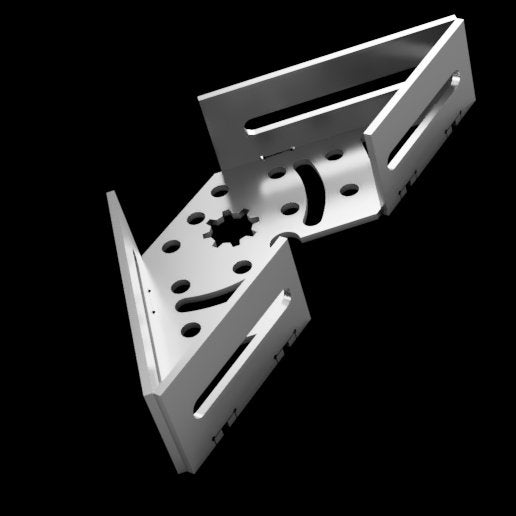

12" x 12" x 3.25" x 1/4" Thick  (Designed to be cut from 1/4" plate)

5/8" holes spaced 2" on center

90 Degree angle with access for welding

135 Degree angle

5/8" pivot hole and arc notch

Pipe Stand

Slotted faces for precise location on Ultimate Maker Table

These are the cut files only, no actual parts will be shipped.  Once you checkout you will be emailed a link to download this file one time.  Please put the file in a safe place so you can use it for years to come.
